T10
Covert Counter-UAS Platform
80 W of RF output across four frequency bands — GPS/GLONASS denial, 900 MHz, 2.4 GHz and 5.8 GHz ISM — enclosed in a sealed, self-powered airtight case. No external antennas. No setup. Operational in seconds.
Counter-UAS Capability in a Carry Case.
The T10 delivers self-contained drone jamming in a form factor indistinguishable from standard field equipment. Four internal omni-directional antennas, an integrated rechargeable battery, and an external enable switch combine to produce a system that is operational without opening the lid — making it the most covert portable counter-UAS system available.
-
01
Four Internal Omni-Directional Antennas4× pre-installed 5 dBi omni-directional antennas deliver 360° azimuthal coverage from a single stationary position. No aiming, no alignment, no assembly — operational immediately on activation.
-
02

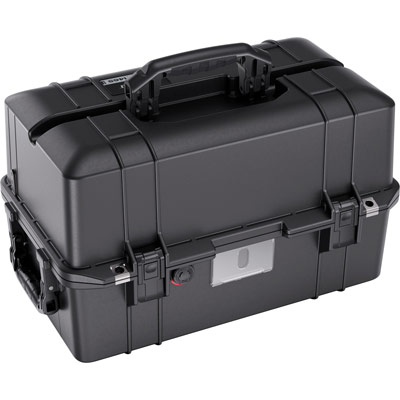

Lid-Closed OperationThe external enable switch and status LED allow the operator to activate and monitor the system without opening the case. From the outside, the T10 is indistinguishable from a standard equipment case — no external antenna ports, protruding elements or radio markings.
-
03
Dual Power — Internal Battery & Vehicle 12VHigh-capacity internal rechargeable battery enables fully self-contained deployment with no external infrastructure. When extended operation is required, direct 11–30 VDC input (12V vehicle compatible) maintains the system indefinitely.
-
04
Air-Cooled Internal Heat ExchangersInternal forced-air thermal management sustains full 80 W output within the sealed enclosure — no external heatsinks, no exposed vents compromising the IP64 rating, no reduction in output at sustained power.
-
05
Exceeds 2:1 Jamming RatioEffective jamming range exceeds twice the distance between the drone and its controller. At 25 W per band on the 2.4 GHz and 5.8 GHz channels, the T10 defeats DJI OcuSync/O3, Autel SkyLink, ELRS and all primary commercial drone command protocols.
Four Simultaneous Bands. One Deployment.
The T10 disrupts drone command links and GPS navigation across all primary UAV frequency domains in a single activation — no band selection, no configuration required.
System Datasheet.
| System | T10 Portable Drone Jamming System — K9-T10 |
|---|---|
| Band 1 — 900 MHz | 902 – 928 MHz ISM — 10 W |
| Band 2 — L1 GNSS | 1.592 – 1.610 GHz GPS/GLONASS — 10 W |
| Band 3 — 2.4 GHz | 2.400 – 2.500 GHz ISM — 30 W |
| Band 4 — 5.8 GHz | 5.700 – 5.850 GHz ISM — 30 W |
| Total RF Output | 80 W combined (10 + 10 + 30 + 30 W) |
| Jamming Range | > 2:1 ratio — jamming range exceeds twice the drone-to-controller distance |
| Antennas | 4× internal omni-directional — 5 dBi gain — pre-installed, no setup required |
| Coverage | Omnidirectional 360° |
| Operating Voltage | 24 VDC internal battery · External 11–30 VDC (12V vehicle compatible) |
| Cooling | Air cooling — internal heat exchangers |
| Enclosure Material | Polypropylene copolymer (PP) |
| IP Rating | IP64 — dust-tight, splash-water resistant |
| Operating Temperature | −20°C to +60°C |
| Dimensions | 480 × 240 × 330 mm |
| Weight | < 15 kg including battery |
| Controls | External enable switch with LED indication — lid-closed operation |
| Carry | Integrated foldable handle |
Where the T10 Operates.
Self-contained battery power, covert carry configuration and lid-closed operation make the T10 uniquely adaptable across static and mobile counter-drone operations.
Event Security
Covert placement within venue perimeter — activated silently with lid closed. No visible radio equipment. Protects against surveillance drones, weaponised UAS and unauthorised aerial photography at public gatherings, concerts, sporting events and political summits.
Law Enforcement
Transported in standard police vehicle and deployed covertly at incident scenes. Vehicle power connection via the 12V input enables extended coverage during ongoing sieges, hostage situations and public order events. Suitable for firearms and specialist units.
Critical Infrastructure
Portable protection for power stations, water treatment facilities, oil & gas installations and government buildings during heightened threat periods. Battery autonomy enables rapid positioning without dependence on site electrical infrastructure.
VIP Protection
Discreet mobile counter-drone capability for close-protection teams. Transported and deployed as standard luggage. Lid-closed operation maintains the team's low profile throughout the protective operation.
Forward Operations
Battery-powered autonomous operation with no external power infrastructure required. Suitable for remote, austere and expeditionary environments where mains or generator power is unavailable. Operates from −20°C to +60°C.
Temporary Security Zones
Rapid deployment of a temporary exclusion zone for diplomatic visits, military exercises, sensitive operations or emergency response. Single operator carry, no installation, fully operational in under one minute.
Why Operators Choose the T10.
Designed for operational environments where visibility, speed of deployment and reliability are non-negotiable.
The Only Portable Jammer That Operates Without Revealing Its Function.
No external antennas. No visible radio equipment. A single external LED. The T10 can be deployed and operated in plain sight without indicating its purpose — a capability unique in the portable counter-drone market.
Covert by Design
No external antennas. No visible radio equipment. Lid-closed operation with a single external LED. The T10 is the only portable jammer that can be deployed and operated without revealing its function.
Operational in Seconds
No assembly, no antenna fitting, no frequency selection. Activate the external switch — all four bands are immediately live. From case to operational in under 10 seconds by a single operator.
True Battery Autonomy
Internal rechargeable battery delivers fully self-contained operation with no dependence on mains or vehicle power. When available, direct 12V vehicle input extends duration without battery management overhead.
Multi-Band Simultaneous
All four frequency bands — 900 MHz, GNSS L1, 2.4 GHz and 5.8 GHz — are jammed simultaneously. No operator band selection. No gaps that allow auto band-switching controllers to regain link.
Rugged All-Environment
IP64 polypropylene copolymer case withstands dust, splash, drops and mechanical shock. Operational from −20°C to +60°C — arctic, desert, tropical and maritime environments without modification.
Single Operator Portable
Integrated foldable handle and sub-15 kg weight enable single-operator carry to any deployment position. Fits in vehicle boots, equipment lockers and tactical holdalls without specialist transport.
360° Coverage
Four internal 5 dBi omni-directional antennas provide equal EIRP in all azimuthal directions. No aiming, no orientation dependency — effective regardless of drone approach vector.
GPS Denial Capability
10 W on L1/GNSS band denies autonomous navigation and return-to-home on all commercially available platforms. Forces the drone into manual flight or causes uncommanded landing — even without defeating the C2 link.
Configure Your T10 Platform.
The T10 is available for authorised military, law enforcement and government customers. Our team can assist with procurement documentation, end-user certification requirements and export licensing for international deployments.
Technical demonstrations and NDA-protected briefings are available to qualified customers. Custom frequency configurations and power levels are available on request.
Platform Summary
- ModelK9-T10
- Architecture4-Band Integrated
- RF Output80 W
- Range> 2:1 Ratio
- Weight< 15 kg
- EnclosureIP64 / PP
- PowerBattery / 12V Ext.
- OriginUnited Kingdom
